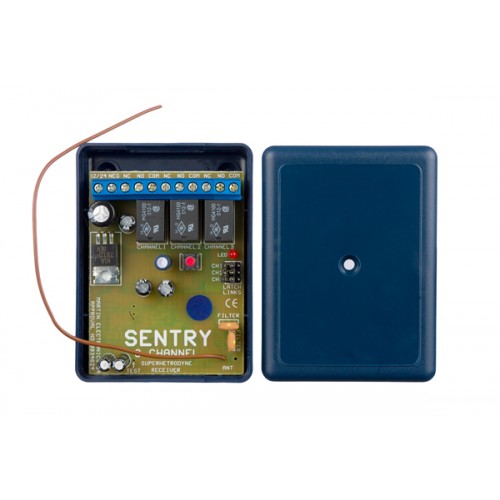

Sentry 3 Channel Receiver Code hopping

Sentry 3 channel receiver for up to 8 users/transmitters

Sentry Code Hopping short range frequency @433.92 MHz, range up to 100 metres in clear line of sight.

Compatible with Code Hopping transmitters, factory coded (over 260 million combinations, 66 bit) 1, 3 & 4 channel transmitters and 1 & 3 channel receivers. (Up to 32 transmitters can be used with each 1 channel receiver and up to 8 transmitters with each 3 channel receiver) for up to 1000 users please refer to the SEN/H1000/R1, All transmitters have their own individual unique code)

• 1 & 3 channel
• 433.92 MHz
• Surface mounted technology
• SAW resonator stabilised
• Latch/pulse selectable
• Normally opened/normally closed contacts
• AC or DC
• External power12 to 24v required
• Sensitivity 11 OdBm +
• Potential free relay outputs
• Change over
• 3 Amp maximum for 3 CH 10m Amp maximum for 1 CH
• UHF

* Code Hopping transmitters & receivers are not compatible French Rolling.
