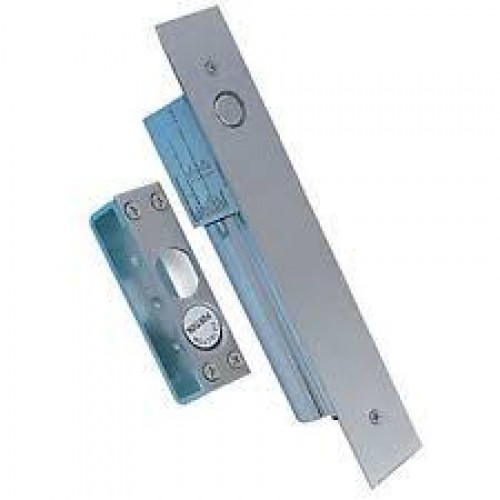

Adams Rite 1391-2042 Electric Solenoid Bolt

Special prices on bulk orders

Application

The Adams Rite 1391 Electric Solenoid Bolt is used to facilitate the remote access and exit control of aluminium, timber or steel doors.

Specifications;

• Suitable for use on aluminium, timber and steel doors
• Holding force in excess of 1000kg
• Slimline style allows the lock to be concealed fitted into the door frame
• CE marked to EMC Directive
• Stainless steel deadbolt has a 16mm throw
• Suitable for single or double action doors (with positive centring door closers)
• Can be fitted into head or into vertical locking stile
• Surface box available with glass door brackets

Finish

1391 Surface Box ~ RiteKey Keypad ~ Push-to-Exit Button ~ Power Supply Unit

Standards

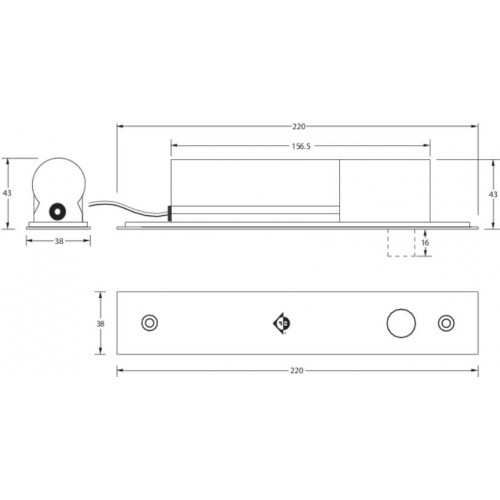

Solenoid Lock:	38mm x 210mm x 43mm.
Cover Plate:	38mm x 220mm x 1mm.
Cover Plate Finish:	Brushed stainless steel
Strike Plate:	24mm x 90mm (27mm deep for metal doors).
Strike Plate Finish:	Brushed stainless steel
Nominal Curent Draw:	@12vDC locking motion 0.9A maintained locked position 0.3A. @24vDC locking motion 0.5A maintained locked position 0.15A. Voltage tolerance ±15%.
Solenoid:	Continuous duty.
Duty:	Fail safe.
Time Delay:	0, 2.5 or 5 secs. User selectable
Monitoring:	Door status and lock sensors.
Bolt Throw:	16mm
Door Gap:	Recommended 3mm
Installation:	Horizontal or vertical mounting.
Note:	To achieve immediate release, it is important that the release switch breaks the circuit on the positive supply to the solenoid bolt.
