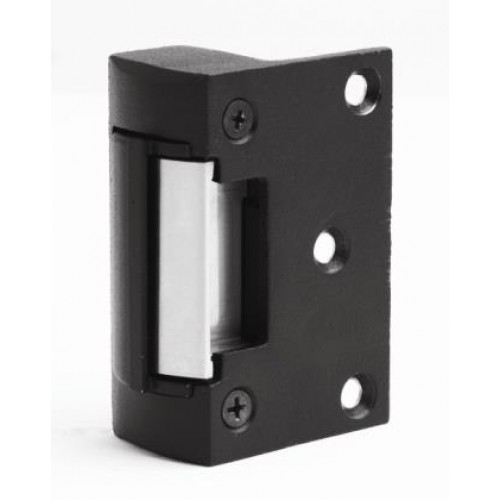

Trimec ES150 Surface Mounted Electric Strike

Application

ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.

ES150 offers high levels of security and features usually provided by more expensive electric locking solutions. The electric strike can be easily installed on steel and wooden door frames.

Specification

• Fail safe/fail secure changeable on site

• Easy installation suitable for steel and wooden door frames

• Stainless steel striker for extra strength and durability

• Available in 12Vdc

• Solenoid rated for continuous use

• IP56 weather resistant as standard

• Tricare 5 Year Warranty

• CE marked to EMC Directive

Finish

• Surface or rim mounted applications
• Suitable for use with all access control systems
• Exposed areas

Standards

Voltage	12Vdc
Current	243 mA @ 12Vdc
Solenoid	Solenoids are rated for continuous use.
Monitoring	None
Holding Force	680 kg Static Strength Rating
Endurance	Cycle tested to 1,000,000 operations
Environment	Operational temperature range -20°C to + 60°C Weather resistant construction available. (IP56)
Body	Solid Stainless Steel Construction
Keeper	Stainless Steel

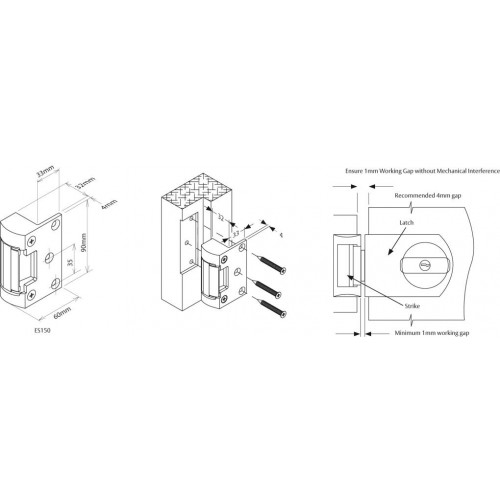

Latch	Suit 15mm latch with 3mm door gap
