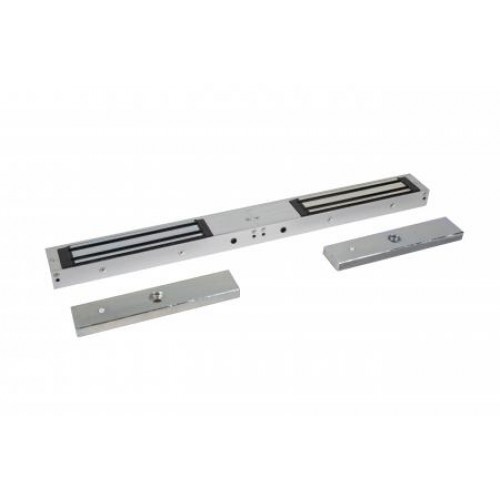

Fire Tested ML600-D-MDS Slimline Double Maglock

Technical specifications

• Aluminium housing.
• Dual Voltage 12/24 VDC @480/240mA x 2
• 280kgs (600lb) holding force x 2
• Built in surge protection.
• Surface Mount
• Fail safe operation (Power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Monitored (Lock monitoring)
• Voltage free relay contacts
• Door status monitoring

Features:

• Fire Rated (30, 60, 90 & 120 minute timber door sets)
• Slim line double magnet.
• Clean and compact design in aluminium.
• Status LED indication
• No residual magnetism

Suitable brackets:

• BK600-D-ZL (ZL Bracket)
• BK600-D-L
• BK600-D-FL/AB (Architectural FL Bracket)
• Dimensions 500x42x25 (mm)
