Trimec ES8000 - V - Lock

Now Obsolete, the ES8000 has been upgraded to the ES8100, please find product at the bottom of the page

Application

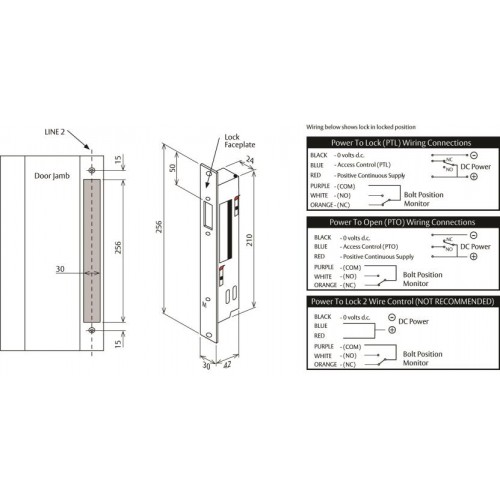

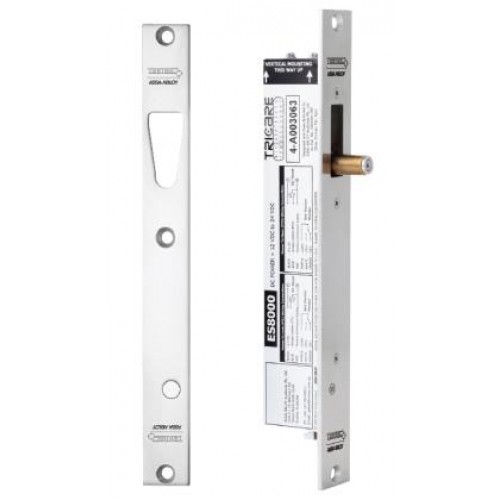

The ES8000, also known as the V-lock is a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The bolt moves into the V shaped strike plate pulling the door aligned with the lock. The high torque motorised bolt can be concealed from view or surface mounted and has the worlds first fail-open motor locking mechanism which eliminates the need and cost of an additional key override function.



Slim design with classic satin stainless steel faceplate, and significant 7mm overall(+/- 3.5mm) door misalignment tolerance make ES8000 a product with great aesthetic appearance as well as easy installation.

Specification

• Side load - pre load capable lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. 1 x permanent power (positive 12-24Vdc) wire. Negative (0 volt return) wire, and 1 x switching input (positive12-24Vdc) wire

• Door misalignment of up to 3.5mm +/-

• Power to Lock (Fail Safe) / Power to Open(Fail Secure) field configurable

• High torque Motorised locking and unlocking(3 wire mode)

• High Speed Operation. Unlocks in less than 1 second

• Surface Mount Accessory Kit. Ideal for 180°swing through glass door applications

• Multiple Orientation - Interior Doors Can be mounted vertically or horizontally(For exterior doors where water ingress is likelyES8000 must be mounted horizontally)

• SCEC Endorsed (Intruder Resistant bracket Required)

• Successfully used in PAS24 security door set tests

• CE marked to EMC Directive

Finish

• Misaligned doors
• Timber Doors
• Glass Doors
• Aluminium Doors

Standards

Voltage	12 to 24Vdc, Voltage Tolerance 12V (+15% - 0%) 24V(+/- 15%)
Current	Minimum 1 Amp Regulated Supply
Monitoring	COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mA)
Security	Passed S3 (AS4145.2- 1993)
Strength	Maximum 1000kg (with supported strike plate)
Side Load	Side Load rated: Motorised Unlocking - 15kg max at bolt Fail Safe Unlocking - 3kg max at bolt
Endurance	300,000 operations
Environment	Operational temperature range -20°C to + 60°C
Lock Body	Stainless Steel Lock Body and Faceplate
Bolt	11mm diameter, 20.5mm projection
