P7 /

Extremely sturdy and reliable hydraulic operators for industrial and condominium use. They can automate swing gate leaves up to 7m wide and weighing up to 500kg. Smooth, silent gate movements are guaranteed by the extremely high-performance hydraulic system and the closing slowdown. Maximum precision in traction and thrust force control is guaranteed by the by-pass valve system.

Closing slowdown Reversible hydraulic operator for swing gates up to 7 m. 500 kg in weight. Cycle time 42+slowdown sec. Useful travel 390 mm. max angle 123 °

The rear articulated brackets and jointed rod make installation simple and reliable in all situations.

The brass release knob, protected with a personal key, facilitates the manual opening of the gate in the event of a power cut.

The closing slowdown guarantees silent, smooth movements on even the biggest gates. Also, the adjustment screw makes it possible to adapt the slowdown intensity to needs of each situation

Heavy duty hydraulic motors for commercial and industrial use.

• P4.5 - 4500 mm max gate leaf width
• P7 - 7000 mm max gate leaf width
• 500 kgs max leaf weight
• P4.5 Operation time to 90˚ approx 30 sec
• P7 Operation time to 90˚ approx 42 sec
• Max 500 operations per 24 hrs
• Electric lock required
• Slow down on closing phase

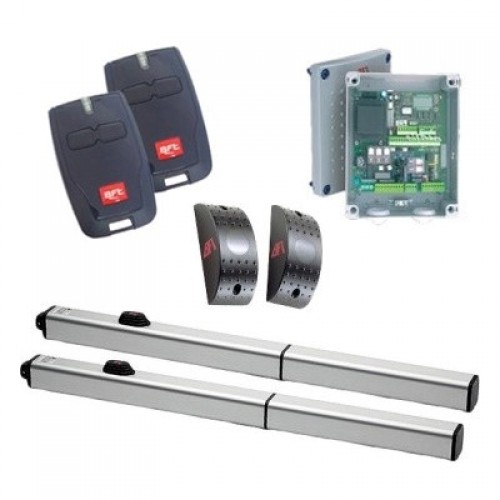

P7 Kit contains:

-2 x P7 motors

-1 x Control panel with built in receiver

- 2 x Mitto transmitters

- 1 x Pair of photocells

- 1 x Antenna
