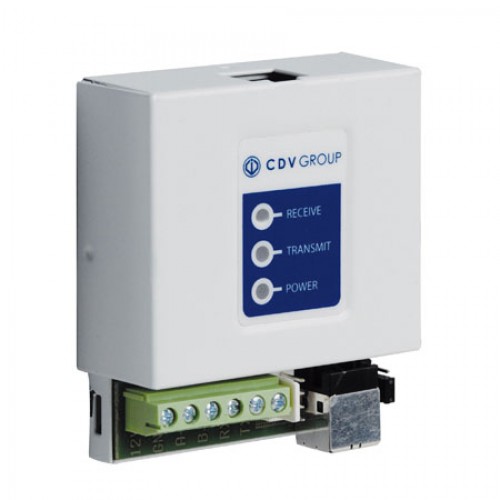

CDVI RS-485 Conversion Module

The CAA360A converts RS485 to USB, and is installed between the server and the CTV900ATR controllers. It creates a "serial link", so the maximum distance can be increased to 1000m. LED indicators for power, receive and transmit show the status of the module.

• Converts RS485 to a USB connection

• LED status indicators

• Dimensions: 71 x 63 x 24mm

• Suitable for UTP cable (Cat 5)

• Power supply: 12Vdc/190mA

Technical Information

• Dimensions: 71 x 63 x 24mm
• Suitable for UTP cable (Cat 5)
• Power supply: 12Vdc
• Consumption: 190 mA

For manual Please CLICK HERE
