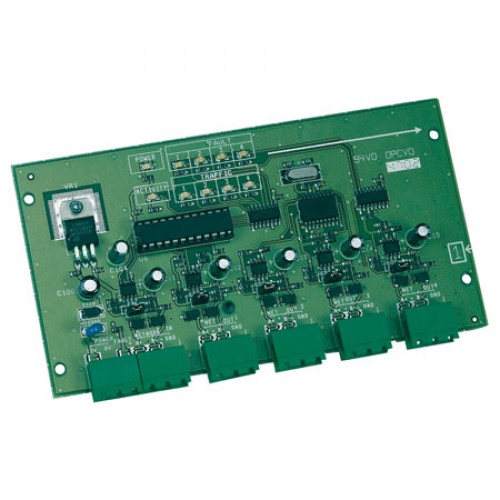

CDVI RS485 Hub For Star Configuration

Creates a star network for configuration of the RS485 bus. Excellent for large areas, or a location where a standard RS485  configuration is not possible. The CAA370P is typically located the centre of the existing RS-485 network, and creates 4 independant RS485 networks.

• RS485 star configuration

• Isolates electrical "Noise "

• LED indication for power, network and port activity

• Creates four independent RS485 networks from a single RS485 network

• Connection to the RS485 bus and E- Bus of the expansion modules

Technical Information

• RS485 configuration in "star"

• Isolates electrical "Noise"

• LED indication of power, network and port activity

• Creates four independent RS485 networks from one RS485 network

• Connection to the RS485 bus of the CTV900A, and the E- Bus of the expansion module

• Connection with the controllers or expansion modules up to 1220m odistance

• Transmission speed: 9600 or 19200 bps

• Power supply: 12Vdc

• Consumption: 100mA max
