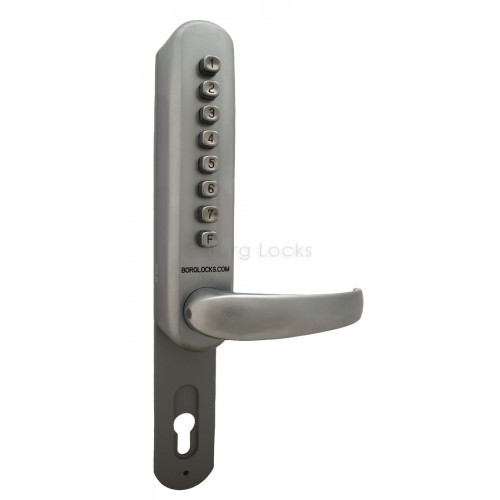

Borg BL6100 Flat Bar Lever Lock With UPVC Extension Kit

The BL6000 series is a new and unique coding system designed, engineered, manufactured and assembled in Borgs factory. Incorporating a single column of 8 buttons, the 6000 offers a patented high security double button press-coded method of access control. Each digit can be set as a one or two button press and therefore the same digit can be set twice in the code.

With a body width of just 45mm the 6000 is primarily designed to be fitted onto narrow stile door sections be it PVC, aluminum, composite or wood. The free turning handle is permanently clutched to provide no handle resistance until the correct code is entered.

The BL 6100 model incorporates a 325mm extension plate fitted behind the keypad and inside handle making it suitable for use with 90 and 92mm centred locks and covers any existing hols in the door.
It has a single column of 8 buttons which allows you to use the same button twice in your code for greater access control.
With a body width of only 45mm the BL 6100 is perfect for fitting to narrow stile door sections. The free turning handle is permanently clutched so offers no handle resistance until the correct code is entered.

• Patented double button press design allowing a greater level of security

• Over 2100 different code combinations

• 70° handle rotation ideal for multi- point locks

• Free turning handle until the correct code is entered

• No tumbler or pins to remove to change code

• 196mm fixing centres

• Optional free passage function

• Narrow housing perfect for PVC, Aluminium, Composite or Wood

• Tested to over 100,00 cycles

• Suitable for external applications

• Available in Satin Stainless, or White finishes, please choose your required finish from our options

• Extension Kit for UPVC Retro- fit

For data sheet please CLICK HERE
