DAA-ML8 RS3 Kit

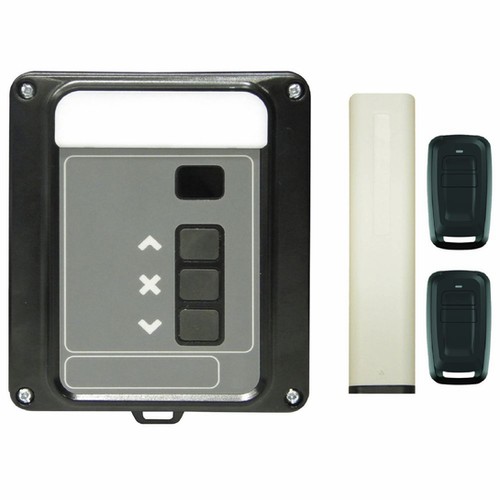

In the kit is a ML8 single phase control panel featuring courtesy light and buttons, a plug in safety receiver card and the Radiosens3 impact detector safety transmitter. Also included are 2 x MUV2 remote controls, and the control panel comes pre-wired with 2 metres of cable with a 3-pin plug on.


RadioSens3 is a third generation communication system via radio without safety edges. The system still offers all the guarantees and complies with all the same requirements as the safety edge system, but takes a fraction of the time to install. The Radiosens3 transmitter (RS3 TGL868) simply screws onto the last moving part of the door. It works as a security band, detecting impact against an obstacle before the force exceeds the limits allowed by standards and activating the door movement reversal.

It is designed for maximum ease of installation and programming. Installers can save time and cut costs due to the fact that there is no safety edge that needs to be attached and no cables, as radio technology is being deployed. Simply attach the transmitter and receiver, and the control panel should one be needed (only works with VERSUS panels), and the installation is complete, just programming is now required!
