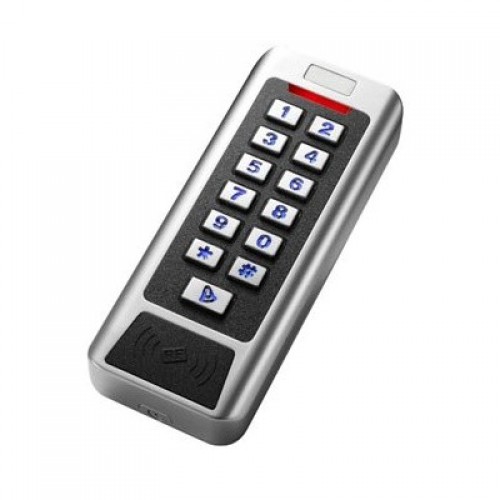

DAA DPN-2 Double Relay Digital Keypad with Proximity

Double Relay Digital Keypad

Narrow style keypad with proximity reader, double relay 2 door unit. Standalone or Wiegand 26 output.

Control up to 2 doors, or a pedestrian and vehicle gate separately with this attractive keypad.

• Working voltage: 12/24Vdc
• 2 relays, control up to 2 doors
• Strong zinc alloy vandal resistant case
• Supports card, PIN or both
• Easy to install and program
• Backlit keys
• With anti theft alarm output for external alarm device
• With built-in anti theft equipment
• Anti-duress, anti-passback, and other advanced features
• Adjustable relay time (1-99 seconds)
• Capacity: 2000 users, codes or cards
• Frequency: 125KHz
• Reading range: 5-6cm
• Wiegand 26 output
• Environment temperature: -45°C to 60°C
• Dimensions: 145 x 55 x 22mm
