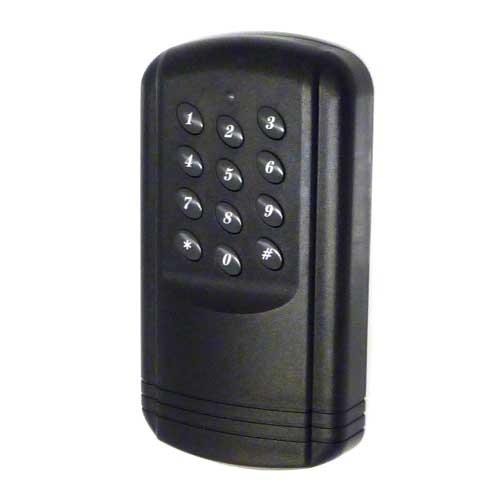

PROMI ECO Digital Keypad

The PROMI ECO from CDVI offers a good value, entry level keypad ideally suited for securing non-harsh environments where a simplified control of access is required.

Manufactured in sturdy polycarbonate, the keypad offers 100 user codes - the adding and deleting of codes, along with door release time etc, is carried out at the keypad via a master programming code

A timed relay takes care of all forms of locking device, and an exit button input completes the product to provide access control for a single door.

The unit operates at 12V ac or dc, consuming 20mA in standby and 80mA when active.

Programming of the unit is very simple. A master code is entered which allows access to the programming menu - from there, codes can be added or deleted, code lengths can be determined (3-8 digits in length) and the lock relay can be set as timed between 1 and 99 seconds or as latched (toggle between on & off).

Programme is also assisted with visual and audible feedback.

• Compact, affordable
• Sturdy polycarbonate construction
• 100 user codes
• Timed relay output
• 3-8 digit code length
• Exit button input
• Simple surface mount
• 12V ac/dc
• 100mA max
• 145 x 80 x 28mm

Please click here for product data sheet
