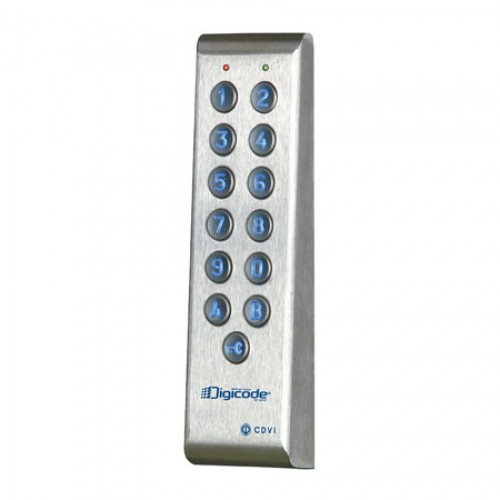

PROFIL100EINT STAINLESS STEEL KEYPAD

The PROFIL100EINT keypad from CDVI is a heavy duty, stainless steel sureface keypad, with a slim design particularly suited to door frames and harsh environments.
Its construction, and high resistance to vandalism, makes the PROFIL100EINT suitable to secure external sites and parking areas in addition to industrial, public, commercial, retail and residential applications.
Backlit keys assist in low-light conditions, and the option to allow users to change their own codes, and 2 relays as standard, increases the flexibility of the products.
The self-contained keypad has all the electronics within the keypad housing.
Programming of the unit is very simple. A master code is entered which allows access to the programming menu - from there, codes can be added or deleted, code lengths can be determined (4-6 digits in length) and the lock relays can be individually timed between 1 and 99 seconds or as latched (toggle between on & off).
Programming is also assisted with visual and audible feedback.

• Stainless steel
• Two relays
• Narrow style to suit restrictive frame sizes
• With backlight
• Surface mounting
• Free electric power suppl, AC/DC
• Diax® mounting with screws
• Suitable for outdoor use
• 100 user codes
• Signaling by means LEDs and buzzer
• Dimensions (L x W x D): 165 x 43 x 27mm
• Power supply: 12V to 24Vac; 12V to 48Vdc
• Consumption: 25 to 80 mA

Please click here for product data sheet
