CDVI SOLARKP Combined Reader And Keypad

• Modern Design

• Reflective backlight

• Touch sensitive keypad

• Card and pin for added security

• Audible and visual feedback



Technical Information

• Dimensions: 130 x 90 x 35mm
• Technologies: Digicode® + Proximity 125 Khz
• Weight: 300gr
• Power supply: 12Vdc
• Consumption: 120mA max
• Wiegand 26, 30 or 44 bit
• Read range : 4 to 10cm depending on the type of card design
• Continuously illuminated
• Tri-colour LED and buzzer
• Polycarbonate
• Easy to assemble

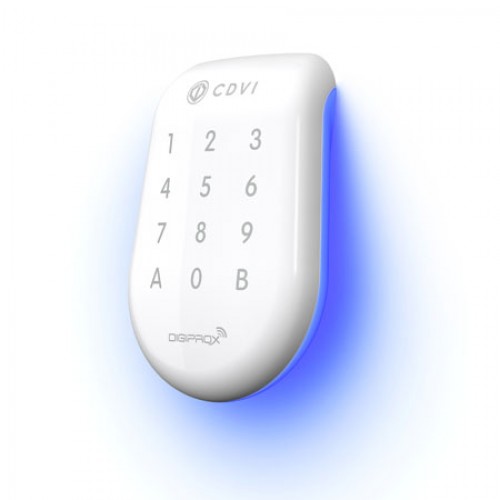

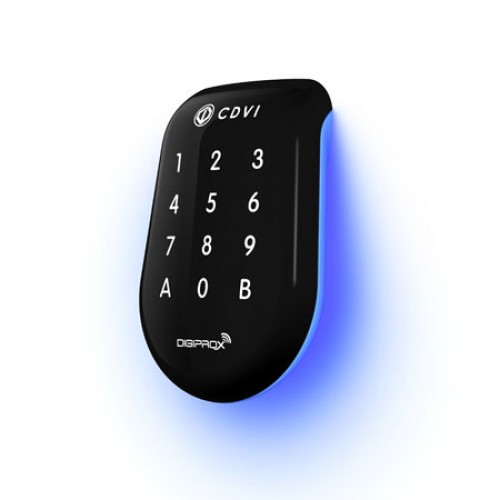

• Available in white or black

For data sheet please CLICK HERE
