SMART G3 Power Supply

RGL have recently launched the SMART-G3: a fully monitored power supply unit with built in LCD diagnostics.

The idea behind it is straightforward: engineers arrive on site, something is wrong, and they are spending time working out what the fault is before they have even started to fix it.

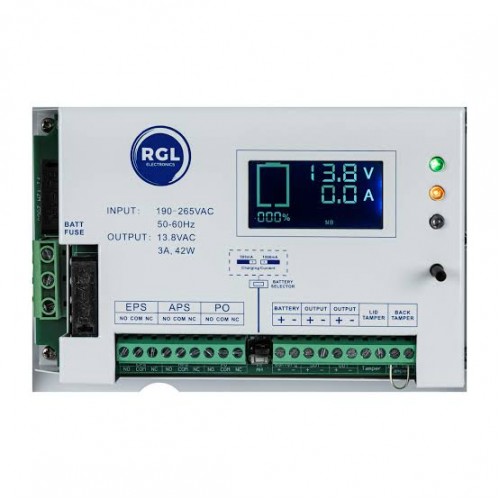

The SMART-G3 changes all of that, with the LCD display, showing real time fault codes, battery health and system status the moment they look at it.

DESCRIPTION

Technical specifications

• Enerflex 13.8v 3amp PSU
  • Max 1.5A output to comply with EN50131-6
• Compliant to EN50131-6
• Security front tamper (grade 2) or front and rear tamper (grade 3)
• Fault outputs:
  • EPS fault (mains fail)
  • APS fault (battery fail)
  • PO fault (output fail)
• Full current to load
• Can recharge an 18aH battery (min 10v) from flat to 80% in 24 hours
• 12VDC output
• Additional battery charging
• Deep discharge protection
• Current limiting
• Short circuit protection
• 230V fused input
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Up to 92% energy efficiency (reduced running costs and lower power usage)

Features:

• Full LCD display
  • Monitors battery health
• Switchmode technology

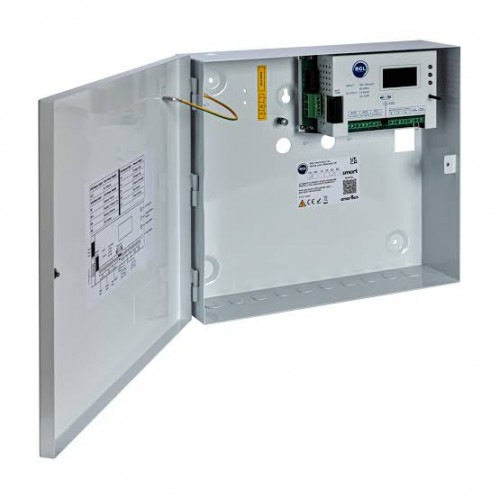

• Mild steel construction (White powder coated)
• Removable lid for easier installs
• LED Indicators (mains, batt, output)
• Separate fused main connectors
• Full electronic protection
• Onboard tamper protection
• Converts power more efficiently
• Multiple cable entry
• Allows for up to 1 x 17/18Ah battery

ACF – AC FAILURE / BF – BATTERY FAILURE
BVL – BATTERY VOLTAGE LOW
BR – BATTERY REVERSE
NB = NO BATTERY / VH – VOLTAGE HIGH
VL – VOLTAGE LOW / OL – OUTPUT OVERLOAD
NO – NO OUTPUT / SC – SHORT CIRCUIT
