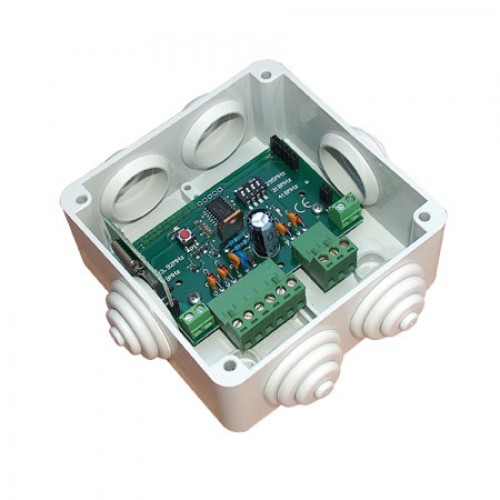

CDVI SELW263OMF External Radio Receiver

Access control receiver with 26 or 30-bit wiegand output, and suitable for external use. Interfaces to any access control system on 26 or 30-bit wiegand format for control of gates/barriers.

• Weigand receiver for external use

• Ideal for gates and barriers

• Compatible with all CDVI transmitters

• Range up to 100m in open field

• Optional tuned antenna

Technical Information

• Radio receiver with Wiegand output

• Ideal for outdoor installation

• Range up to 100m in open space

• Frequency: 433MHz

• Ability to connect external antenna for better reception SEA433

• Dimensions: 128 x 128 x 57mm

• Surface mounting

• Rolling code, 433 Mhz Keeloq

• Modulation: AM / ASK

• Power supply: 12/24Vac/dc

• Consumption: 24mA

*30 bit allows 4 serial codes from the transmitter on A, B, C & D buttons.
