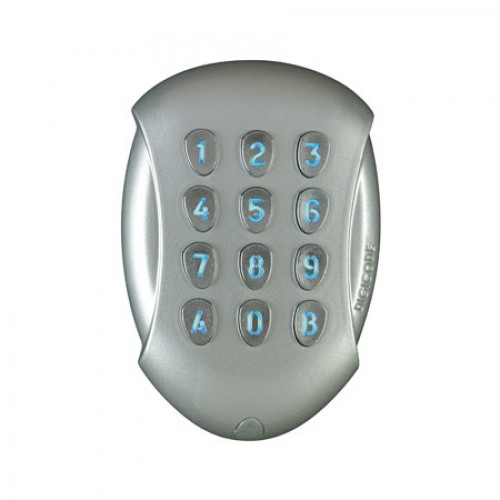

GALEO STYLISH BACK LIT KEYPAD

Galeo is a stylish and innovative keypad, combining good looks with a high level of ruggedness and vandal resistance.
Galeo is supplied with a remote electronic controller - this means the electronics are housed in the secure area and therefore does not allow the possibility of gaining entry by “tampering” with the electronics within the keypad body.
To enhance Galeo’s flexibility, the unit can has “free voltage” technology, which means any voltage between 12 and 48Vdc or 12 and 24Vac can be used. Additionally, there is the option of models with 2 or 3 relays to allow for additional switching or door/gate operation.

Galeo is ideally suited for use internally or externally. Clever innovation has resulted in a keypad which can easily cope in the harshest of environments - and with the benefit of soft blue backlighting and a modern but uncompromising design, it truly is a keypad for all your coded entry solutions.

• Blue backlighting - selectable
• Low profile
• Two relays
• Surface mounting
• Mounting with Torx® screws
• Suitable for outdoor use
• Electronics shielded with a protective coating
• 100 user codes
• Available in Wiegand version (GALEOW)
• Dimensions: 110 x 75 x 15mm
• Signaling by LEDs and buzzer
• Power supply: 12V to 24Vac & 12V to 48Vdc
• Consumption: from 30 to 100 mA

Please click here for product data sheet
