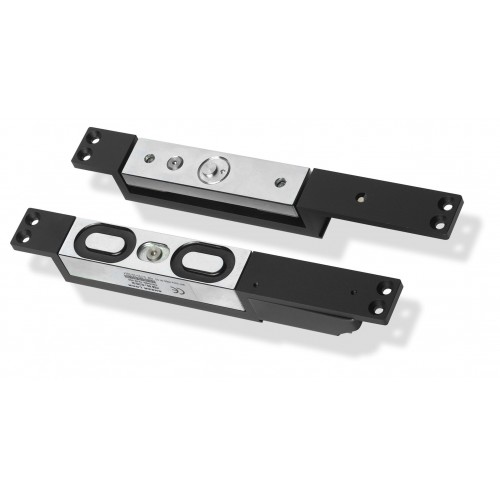

GS705-30 Shearlock

GS705 Shear Locks provide up to 2700 pounds of shear holding force, securing the door against any invasion. They can be installed on various kinds of doors, such as aluminum, wooden, steel or exit doors. An optional bracket, is provided for surface mounting on narrow width of doors. The lock bolt remains unlocked (fail-safe version), permitting free access and entry, in the event of power or system failure. In addition the series allow adjustable re-lock time from 1 to 6 seconds.

• Monitored

• 12-24 Vdc

• 1.4A @ 24VDC 2.2A @ 12 VDC pull in
• 0.3mA @ 24VDC 0.5mA @ 12VDC holding
• Holding force up to 2700lbs
• 267mm x 30mm x 34mm
