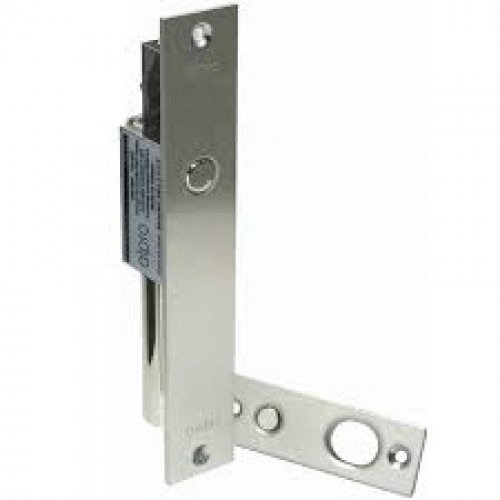

Alpro EB1001 Electric Bolt

The Alpro EB1001 Electric bolt allows for remote axccess and exit control of most timber and metal doors. It is suitable for sliding or swing, single and double action operations. It can be fitted in the frame or in the door and comes with plug in LED bolt indicator as standard.

Function

Fail Open/ Power to lock.

Construction

Stainless steel bolt (15mm diameter and throw) and strike plate provide secure locking. A stainless steel dress plate is provided to cover the brushed aluminium faceplate.

Electrical Features

Voltage   12v DC+/- 15%
Activating Current   1000mA
Holding Current    250mA
Continuously rated solenoid
Fully protected against transient & reverse polarity.

Monitoring

Door position switch Bolt position indicator.

Versatile Installation

Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Auto Relock Function

Can be set for 0,3,6,or 9 seconds.

Accessories

Surface mounting kit in chromated steel. If you require this kit please choose from our options.

For data sheet please CLICK HERE
