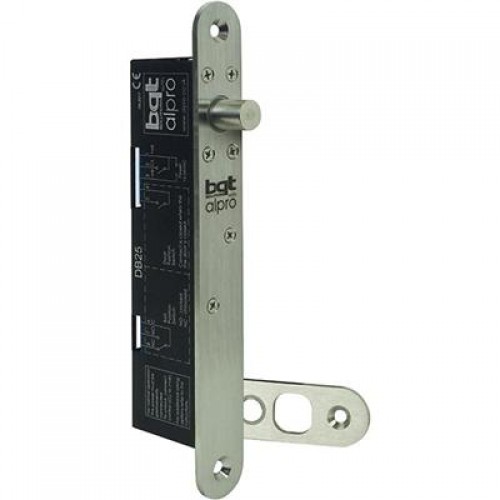

Alpro DB25 Deadlocking Bolt

The alpro DB25 incorporates the latest design innovations to be applied to the manufacture of a transverse action Deadlocking Solenoid Bolt.
This ultra slim design enables fixing into very narrow sections whilst an advanced microprocessor module provides power reduction allowing for continuous operation without heat generation as well as automatic voltage regulation, dual monitoring and access control features.

High Physical Security

Holding force 1,000kg - automatic deadlocking Bolt throw 16mm.

Robust Construction

All stainless steel bolt of 12.7mm diameter, linkages and springs. 3mm stainless steel faceplate and strike plates with fully enclosed mechanism.

Versatile Installation

Designed to provide concealed high security locking on any single or double action, hinged or sliding door in timber or metal for vertical or horizontal mounting.

Slimline Dimensions

210mm (L) x 25mm (W) x 42mm (D)
Back Box 164mm (L) x 22mm (W) x 39mm (D)

Faceplates

Radius

Multiple Voltage Input

Any voltage from 12v DC- 10% to 24 v DC +15%.
Complete with built in transient and reverse polarity protection and continuously rates solenoid.

Low Current Consumption

Volts            Current- Activate         Current- Hold
12v DC          1100mA                           210mA
24v DC          1000mA                           90mA

Dual Monitoring

Bolt and Door position switches.

For data sheet please CLICK HERE
