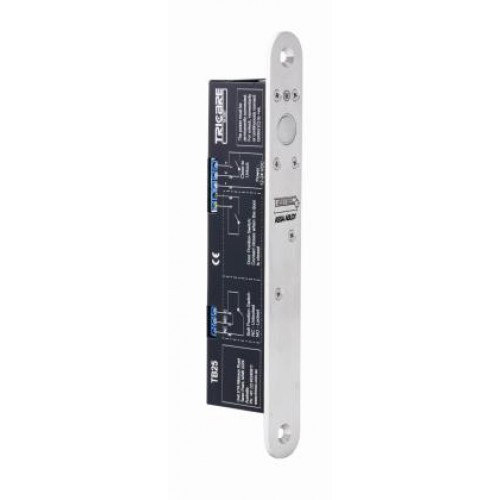

Trimec TB25 Drop Bolt

Application

The TB25 range of drop bolts represent true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Trimec®. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical.

Specification

• High Security. Bolt is deadlocked in the extended position

• Bolt position monitored

• Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)

• Multiple orientation, drop bolts will work horizontally or vertically

• Power to Lock

• Continuously Rated Solenoid

• Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate

• Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position

• Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk

• CE marked to EMC Directive

Finish

• Glass doors
• Timber Doors

Standards

Voltage	12 or 24Vdc
Current (Start)	1100mA @ 12V, 1000mA @ 24V
Current (Holding)	210mA @ 12V, 90mA @ 24V
Holding Force	1000kg
Locking Mode	PTL & PTO

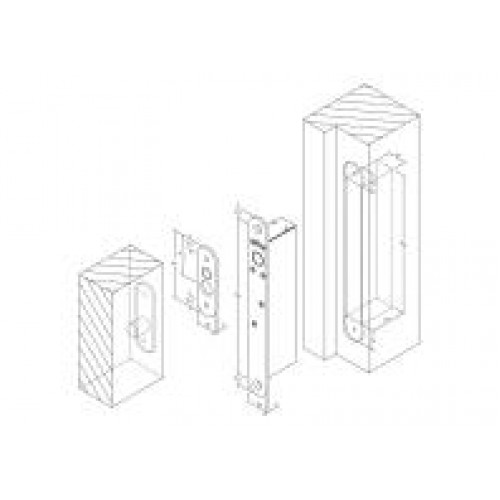

Dimensions (Mortice)	164 x 22mm
Bolt Length	12.7 x 16mm
Faceplate Size	10 x 25mm
Monitoring Contacts	Bolt & Door
