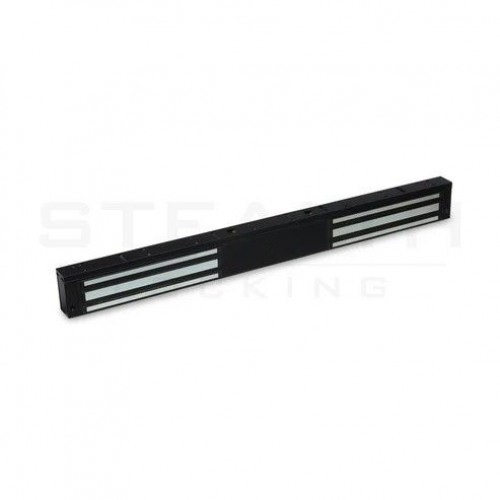

STEALTH SLIM MONITORED DOUBLE MAGLOCK 12/24VDC

Slim monitored double magnetic lock for double doors. Compact design making it ideal for most indoor applications where 275kg holding force is sufficient. Monitoring provides LED lock status indication and relay contacts for signalling.

FEATURES

MOV provides spike and surge protection

Fail-safe operation (power to lock)

Anti-residual magnetism protection

Top-plate, armature-plate and fixings included

Slim design

Dual voltage 12Vdc or 24Vdc (selectable)

Surface mount

Stealth black finish

Fire rated

TECHNICAL INFORMATION

Holding force: up to 275kg (600lb)

Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc

Voltage tolerance: +/- 15%

Operating temp: -10°C to +55°C

Humidity: 0-95% non condensating

Weight: 4kg approx.

Red/green LED indicator (one per side)

Relay: COM/NO/NC (1A@24VDC (one per side
