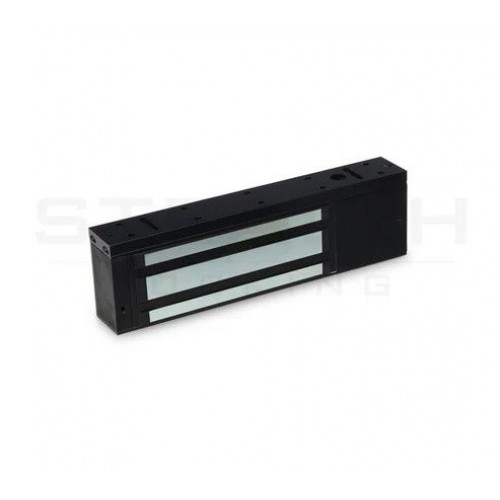

STEALTH20 STANDARD MONITORED MAGLOCK 12/24VDC
Standard single monitored magnetic lock designed for indoor applications where 545kg holding force is required. Monitoring provides LED lock status indication and relay contacts for signalling.
FEATURES
Lock monitoring
Dual voltage
Surface mount
Stealth black finish
Fire rated
TECHNICAL INFORMATION
Holding force: up to 545kg (1200lb)
Current draw = 500mA @ 12Vdc / 250mA @ 24Vdc
Voltage tolerance: +/- 15%
Operating temp: -10°C to +55°C
Humidity: 0-95% non condensating
Weight: 4.8kg approx.
Red/Green LED indicator
Relay: COM/NO/NC (1A@24Vdc)
